Arda Flanges, based in Istanbul, Turkey, stands out as a top-notch manufacturer and supplier of high-quality ANSI B16.48 Flanges. Renowned for their precision engineering and unwavering adherence to international standards, Arda Flanges delivers products that boast exceptional strength, durability, and leak-proof performance for industrial piping systems. These ANSI B16.48 Flanges are specifically crafted for large-diameter, high-pressure pipelines, ensuring secure and reliable connections in critical applications. With a strong commitment to quality, timely delivery, and customer satisfaction, Arda Flanges caters to industries like oil and gas, petrochemical, chemical processing, and power generation, providing robust and long-lasting flange solutions for demanding industrial operations around the globe.
Typically, ANSI B16.48 Flanges are made from carbon steel, alloy steel, or stainless steel, depending on the specific service requirements. Mechanically, they showcase impressive tensile strength ranging from 520 to 700 MPa, yield strength between 250 and 400 MPa, and hardness levels of 150 to 200 HB. These flanges are known for their excellent toughness, corrosion resistance, and durability, making them perfect for high-pressure, large-diameter applications where reliable, long-term performance and operational safety are paramount.

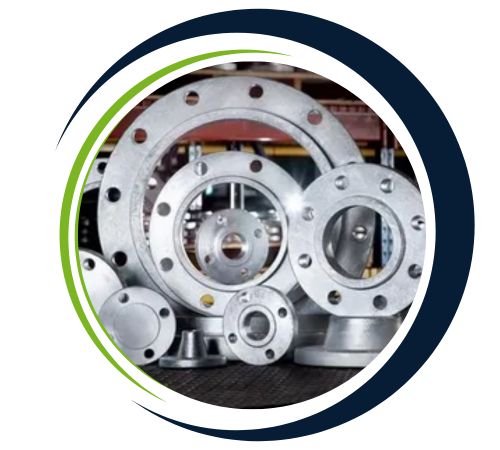

Arda Flanges, a leading supplier in Istanbul, Turkey, offers an extensive selection of ANSI B16.48 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
| 1/2 | 15 | 16 | 45 | 60 | 3 | 38 | 2 | 15.875 | 0.07 | 0.03 | 0.03 |
| 3/4 | 20 | 21 | 54 | 70 | 3 | 38 | 2 | 15.875 | 0.1 | 0.05 | 0.04 |
| 1 | 25 | 27 | 64 | 80 | 3 | 38 | 2 | 15.875 | 0.14 | 0.07 | 0.06 |
| 1 1/4 | 32 | 42 | 73 | 90 | 6.4 | 38 | 4 | 15.875 | 0.35 | 0.21 | 0.14 |
| 1 1/2 | 40 | 48 | 83 | 100 | 6.4 | 38 | 4 | 15.875 | 0.46 | 0.27 | 0.18 |
| 2 | 50 | 61 | 102 | 120 | 6.4 | 51 | 4 | 19.05 | 0.68 | 0.41 | 0.26 |
| 2 1/2 | 65 | 73 | 107 | 140 | 6.4 | 51 | 4 | 19.05 | 0.7 | 0.46 | 0.24 |
| 3 | 80 | 89 | 133 | 150 | 6.4 | 64 | 4 | 19.05 | 1.1 | 0.71 | 0.39 |
| 3 1/2 | 90 | 102 | 159 | 175 | 9.7 | 64 | 5 | 19.05 | 2.44 | 1.54 | 0.9 |
| 4 | 100 | 114 | 172 | 190 | 9.7 | 64 | 5 | 19.05 | 2.81 | 1.8 | 1.01 |
| 5 | 130 | 141 | 194 | 215 | 9.7 | 76 | 5 | 22.225 | 3.37 | 2.29 | 1.08 |
| 6 | 150 | 168 | 219 | 240 | 12.7 | 76 | 7 | 22.225 | 5.39 | 3.82 | 1.57 |
| 8 | 200 | 219 | 276 | 300 | 12.7 | 76 | 10 | 22.225 | 8.32 | 6.07 | 2.25 |
| 10 | 250 | 273 | 337 | 360 | 15.7 | 102 | 12 | 25.4 | 15.04 | 11.19 | 3.84 |
| 12 | 300 | 324 | 406 | 430 | 19.1 | 102 | 15 | 25.4 | 26.95 | 19.77 | 7.18 |
| 14 | 350 | 356 | 448 | 475 | 19.1 | 108 | 15 | 28.575 | 32.94 | 24.07 | 8.87 |
| 16 | 400 | 406 | 511 | 540 | 22.4 | 108 | 17 | 28.575 | 50.27 | 36.73 | 13.54 |
| 18 | 450 | 457 | 546 | 580 | 25.4 | 114 | 20 | 31.75 | 61.79 | 47.55 | 14.23 |
| 20 | 500 | 508 | 603 | 635 | 28.4 | 121 | 22 | 31.75 | 83.67 | 64.85 | 18.82 |
| 24 | 600 | 610 | 714 | 750 | 31.8 | 140 | 24 | 34.925 | 129.3 | 101.8 | 27.49 |
| Size in Inch | Size in MM | Internal Dia. | Outer Dia. | Center to Center | Thick. | Web Width | Web Thick. | Hole Dia | Spec. Blind Weight in Kg | Paddle Blank Weight in kg | Paddle Spacer Blank Weight in kg |
| 1/2 | 15 | 16 | 51 | 65 | 6.4 | 38 | 4 | 15.875 | 0.19 | 0.1 | 0.09 |
| 3/4 | 20 | 21 | 64 | 80 | 6.4 | 38 | 4 | 19.05 | 0.31 | 0.16 | 0.14 |
| 1 | 25 | 27 | 70 | 90 | 6.4 | 38 | 4 | 19.05 | 0.36 | 0.19 | 0.16 |
| 1 1/4 | 32 | 42 | 79 | 100 | 6.4 | 38 | 4 | 19.05 | 0.43 | 0.25 | 0.17 |
| 1 1/2 | 40 | 48 | 92 | 115 | 6.4 | 38 | 4 | 22.225 | 0.58 | 0.34 | 0.24 |
| 2 | 50 | 61 | 108 | 125 | 9.7 | 51 | 5 | 19.05 | 1.19 | 0.71 | 0.48 |
| 2 1/2 | 65 | 73 | 127 | 150 | 9.7 | 51 | 5 | 22.225 | 1.64 | 0.98 | 0.65 |
| 3 | 80 | 89 | 146 | 170 | 9.7 | 64 | 5 | 22.225 | 2.11 | 1.29 | 0.81 |
| 3 1/2 | 90 | 102 | 162 | 185 | 12.7 | 64 | 7 | 22.225 | 3.35 | 2.09 | 1.26 |
| 4 | 100 | 114 | 178 | 200 | 12.7 | 64 | 7 | 22.225 | 4.01 | 2.52 | 1.49 |
| 5 | 130 | 141 | 213 | 235 | 15.7 | 76 | 8 | 22.225 | 6.98 | 4.47 | 2.51 |
| 6 | 150 | 168 | 248 | 270 | 15.7 | 76 | 8 | 22.225 | 9.34 | 6.06 | 3.28 |
You’ll find ANSI B16.48 Flanges widely utilized in oil and gas pipelines, petrochemical plants, chemical processing systems, and power generation facilities. They excel at connecting large-diameter pipes, valves, pumps, and pressure vessels in high-pressure scenarios. These flanges guarantee secure, leak-proof joints, preserving system integrity, operational safety, and long-term reliability. With their robust design, mechanical strength, and ability to withstand harsh environments, ANSI B16.48 Flanges are the go-to choice for demanding industrial piping applications that require durable, efficient, and dependable flange solutions.
Yes, we offer custom sizes for ANSI B16.48 Flanges to meet specific project needs. Our team at Arda Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ardaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
