Arda Flanges, based in Istanbul, Turkey, stands out as a top-notch manufacturer and supplier of high-quality API 6A Flanges. Known for their precision engineering and strict adherence to international standards, Arda Flanges creates products that deliver outstanding strength, durability, and leak-proof performance, especially for critical oil and gas applications. These API 6A Flanges are specifically crafted for high-pressure wellhead and Christmas tree systems, ensuring secure and reliable connections even in the toughest environments. With a strong focus on quality, timely delivery, and customer satisfaction, Arda Flanges caters to the oil and gas, petrochemical, and energy sectors, providing dependable and long-lasting flange solutions for essential pipeline and equipment connections.
Typically, API 6A Flanges are made from high-strength carbon steel, alloy steel, or stainless steel, designed to endure extreme pressure and temperature conditions. They boast impressive mechanical properties, including a tensile strength of 690–830 MPa, yield strength of 415–550 MPa, and hardness levels between 200–240 HB. These flanges are not only tough but also resistant to corrosion, making them perfect for high-pressure, high-temperature applications where reliability, safety, and long-term performance are paramount.
| Material Specification Of : | (American Petroleum Institute) API Flanges |
|---|---|
| Pressure Rating | Class 150 To Class 2500 |
| High Temperature | Above 200°C (400°F) For Class 150 Or Above 400°C (750°F) |
| Low Temperature | Above -29 Degree C (−20°F) |
| Common Types Of Flanges: | Slip On (SORF), Weld Neck (WNRF), Blind (BLRF), Lap Joint (Loose), Threaded (NPT), Socket-Weld (SWRF) |
| Special Types Of Flanges : | Nipoflange, Elboflange, Latroflange, Swivel Flange, Expanding Flange, Reducing Flange, Weldoflange |
| Standard Cover : | pressure ratings & temperature ratings, materials, marking, dimensions, weight, tolerances, testing |
| Contact Faces | RTJ (Ring Type Joint), FF (Flat Face), RF (Raised Face), T/G (Tongue And Groove ), M/F (Male And Female) |
| Size Chart | Normal Pipe Size 1/2 to NPS 24″ |
| Materials | Stainless Steel (Grade 304/L, 316/L), Carbon Steel (ASTM A105 And ASTM A350), Alloy Steel (ASTM A182), Mild Steel, Duplex Steel, Pressure Vessel Steel, Titanium, Super Duplex Steel, Nickel Alloy, Monel, Inconel, Hastelloy, Copper Nickel, Cast Iron, Wrought Iron. |
| Thickness | Normal Pipe Size ≤ 18 |
| Bore Diameter | Normal Pipe ≤ 10 |
| Flanges Standards | EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN |
| Marking Standard | Name of Manufacturer Schedule Type of Flange Facing Nominal Pipe Size Pressure Class ASME B16 Designation |
| Bolt Type | high strength bolts medium strength bolts low strength bolts |
| Gaskets Types | Full Face Gasket Flat Ring Gasket Metallic Ring Gakset |
| Advantages Of Pipe Flange | Used to Connect Pipe System Easy Repair Pipe System Assembled Without Welding |
| Test Pressure | 3 000 PSI | 4 500 PSI | 7 500 PSI | 15 000 PSI | 22 500 PSI | 30 000 PSI |
|---|---|---|---|---|---|---|
| Maximum Pressure (Working) | 2,000 PSI | 3,000 PSI | 5,000 PSI | 10,000 PSI | 15,000 PSI | 20,000 PSI |
| Temperature Rating | K (-60 Deg C) TO Y (+345 Deg C) | K (-60 Deg C) To Y (+345 Deg C) | K (-60 Deg C) To Y (+345 Deg C) | K (-60 Deg C) To Y (+345 Deg C) | K (-60 Deg C) To Y (+345 Deg C) | K (-60 Deg C) To Y (+345 Deg C) |
| Product Specification Levels | 1, 2, 3 & 4 | 1, 2, 3 & 4 | 1, 2, 3 & 4 | 1, 2, 3 & 4 | 1, 2, 3 & 4 | 1, 2, 3 & 4 |

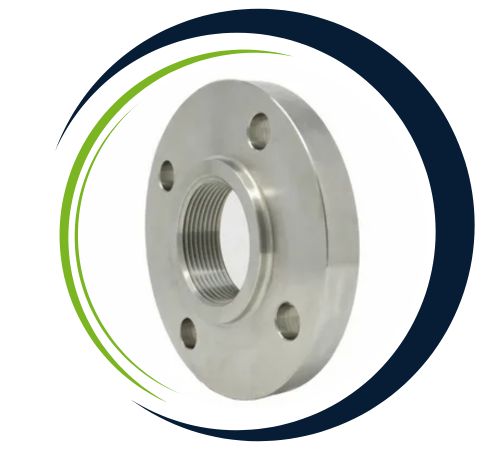

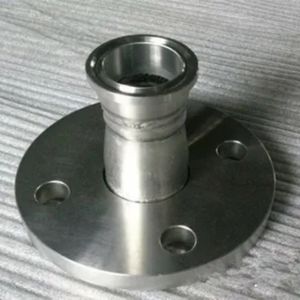

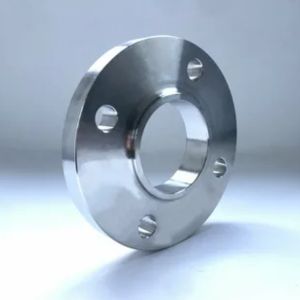

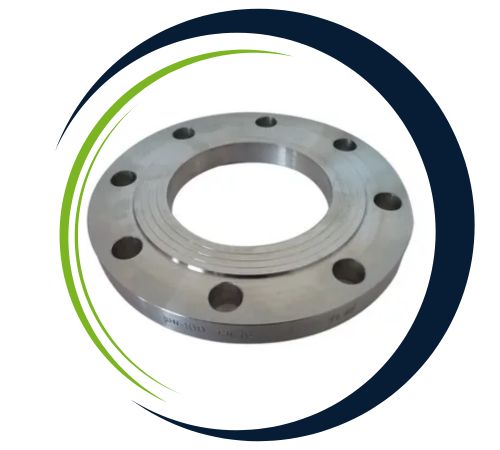

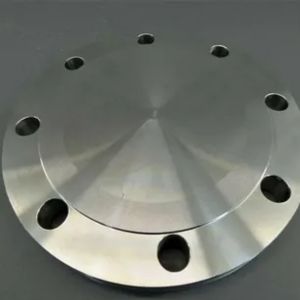

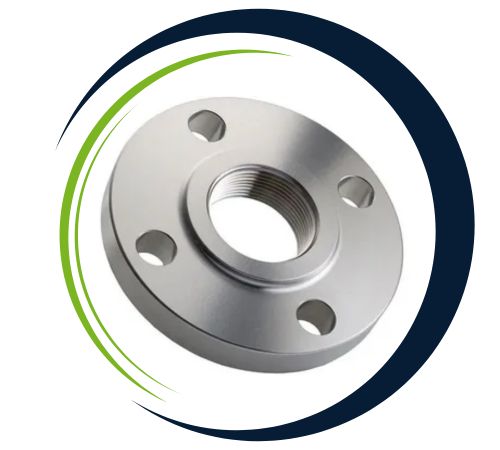

Arda Flanges, a leading supplier in Istanbul, Turkey, offers an extensive selection of API 6a Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find API 6A Flanges widely used in oil and gas wellheads, Christmas tree assemblies, subsea pipelines, and high-pressure control systems. They excel at connecting valves, pumps, and pressure-containing equipment in extreme conditions. These flanges guarantee secure, leak-proof joints, ensuring operational safety and system integrity. Thanks to their robust construction, mechanical strength, and ability to withstand harsh environments, API 6A Flanges are the go-to choice for demanding oil and gas and petrochemical applications that require reliable, durable, and long-lasting flange solutions.
Yes, we offer custom sizes for API 6a Flange to meet specific project needs. Our team at Arda Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ardaflanges.com.
| Weld Neck, Integral, Blinds, Equivalent | |||
| Maximam Working Pressure | 2000 PSI | 3000 PSI | 5000 PSI |
| Test Pressure | PSI 3000 | PSI 4500 | PSI 7500 |
| Product Spec Levels | 1, 2, 3 and 4 | 1, 2, 3 and 4 | 1, 2, 3 and 4 |
| API Temperature Rating | K (-60 ° C) to Y (+345 ° C) | K (-60 ° C) to Y (+345 ° C) | K (-60 ° C) to Y (+345 ° C) |
| Integral, BLRF, Target BLRF and Test Flanges | |||
| Minimam Yield | 60 000 PSI | 60 000 PSI | 60 000 PSI |
| Minimam Tensile | 85 000 PSI | 85 000 PSI | 85 000 PSI |
| Material | API 60K | API 60K | API 60K |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
