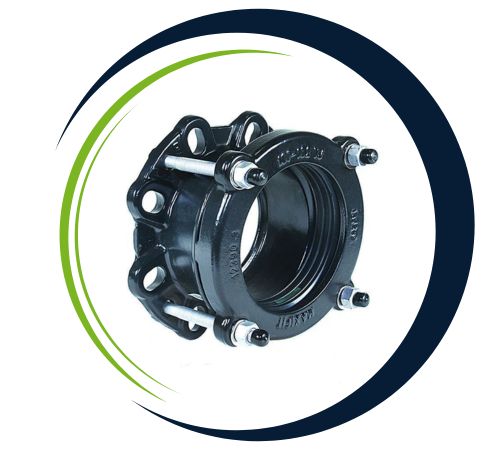

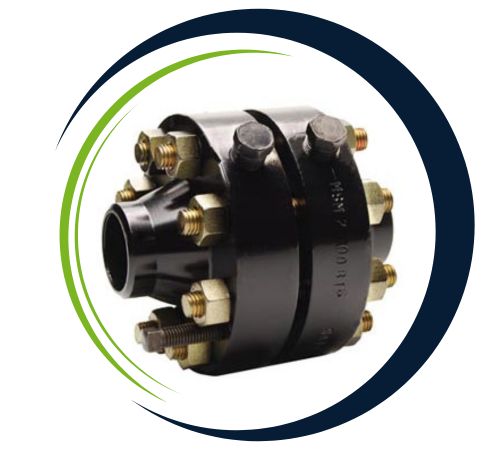

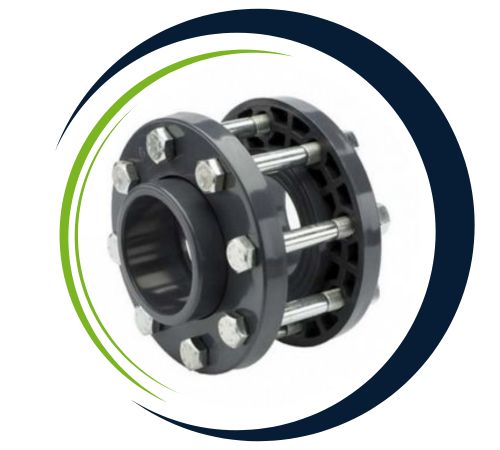

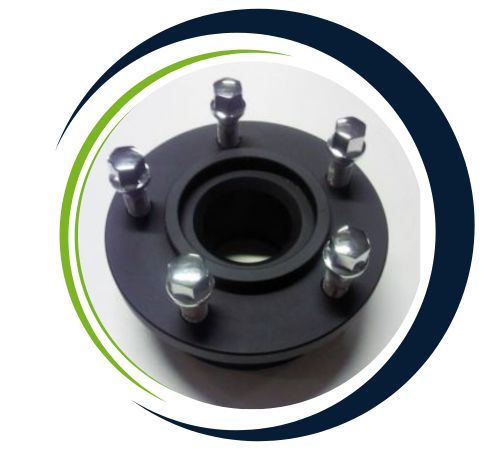

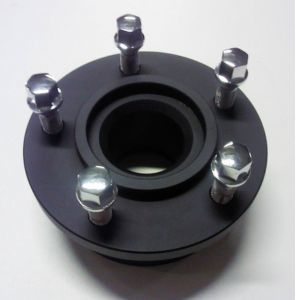

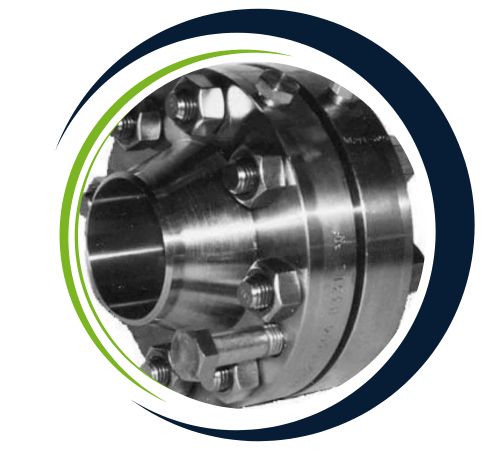

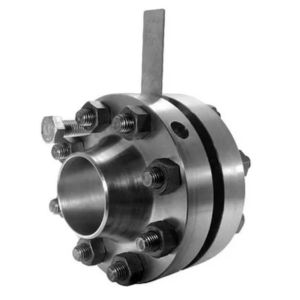

Arda Flanges, based in Istanbul, Turkey, is a reliable manufacturer and supplier of Carbon Steel Orifice Flanges, delivering top-notch solutions for precise flow measurement and control in industrial piping systems. These flanges come with drilled holes specifically designed to hold orifice plates, allowing for accurate measurement of both liquid and gas flow rates. Crafted from high-quality carbon steel, Carbon Steel Orifice Flanges boast impressive mechanical strength, durability, and reliability, even under high pressure and varying temperature conditions. With state-of-the-art production facilities, rigorous quality control, and a commitment to international standards, Arda Flanges guarantees dependable and cost-effective flange solutions for flow measurement across various industries.
Typically made from premium-grade carbon steel, Carbon Steel Orifice Flanges offer exceptional tensile and yield strength, toughness, and ductility. They are engineered to handle high pressures, thermal fluctuations, and mechanical stress, making them perfect for challenging industrial settings. The meticulous drilling and machining processes ensure accurate flow measurement while preserving structural integrity. Additionally, these flanges show good resistance to wear and corrosion, especially when paired with suitable protective coatings or surface treatments, ensuring long-lasting reliability.
Arda Flanges, a premier supplier in Istanbul, Turkey, specializes in high-quality Carbon Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Carbon Steel Orifice Flanges Specifications: ASTM A105/ ASME SA105
Carbon Steel Orifice Flanges Dimensions: ANSI/ASME B16.36, Series A & B, BS4504, BS 10, EN-1092, DIN, etc.
Carbon Steel Orifice Flanges Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Carbon Steel Orifice Flanges : Size :1/2″ (15 NB) to 48″ (1200NB)
Carbon Steel Orifice Flanges Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Orifice Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Hub OD | Weld Neck OD | Welding Neck Length | RF Dia. | RF Height | PCD | Orifice Hole dia | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | F | G | H | I | ||||||||
| 1 | 25 | 125 | 36.6 | 54 | 33.4 | 81 | 50.8 | 2 | 88.9 | 6.4 | 4 | 5/8 | 125 | 3/4 | M16 | 4.5 |
| 1 1/2 | 40 | 155 | 36.6 | 70 | 48.3 | 84 | 73 | 2 | 114.3 | 6.4 | 4 | 3/4 | 135 | 7/8 | M20 | 6.5 |
| 2 | 50 | 165 | 36.6 | 84 | 60.3 | 84 | 92.1 | 2 | 127 | 6.4 | 8 | 5/8 | 125 | 3/4 | M16 | 7 |
| 2 1/2 | 65 | 190 | 36.6 | 100 | 73 | 87 | 104.8 | 2 | 149.2 | 6.4 | 8 | 3/4 | 135 | 7/8 | M20 | 7.5 |
| 3 | 80 | 210 | 36.6 | 117 | 88.9 | 87 | 127 | 2 | 168.3 | 9.5 | 8 | 3/4 | 135 | 7/8 | M20 | 9.4 |
| 4 | 100 | 255 | 36.6 | 146 | 114.3 | 90 | 157.2 | 2 | 200 | 12.7 | 8 | 3/4 | 135 | 7/8 | M20 | 13.2 |
| 6 | 150 | 320 | 36.6 | 206 | 168.3 | 98 | 215.9 | 2 | 269.9 | 12.7 | 12 | 3/4 | 135 | 7/8 | M20 | 14.6 |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 12.7 | 12 | 7/8 | 145 | 1 | M24 | 30 |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.3 | 12.7 | 16 | 1 | 165 | 1 1/8 | M27 | 41 |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 12.7 | 16 | 1 1/8 | 180 | 1 1/4 | M30 | 62 |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 12.7 | 20 | 1 1/8 | 185 | 1 1/4 | M30 | 84 |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 12.7 | 20 | 1 1/4 | 195 | 1 3/8 | M33 | 111 |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 12.7 | 24 | 1 1/4 | 205 | 1 3/8 | M33 | 138 |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 12.7 | 24 | 1 1/4 | 215 | 1 3/8 | M33 | 171 |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 12.7 | 24 | 1 1/2 | 240 | 1 5/8 | M39 | 247 |
Carbon Steel Orifice Flanges find extensive use in the oil and gas, petrochemical, chemical processing, power generation, and water treatment sectors. They are particularly well-suited for installation in pipelines, pumps, and pressure vessels where precise flow monitoring is crucial. Common applications include measuring flow in fuel lines, chemical injection systems, water distribution networks, and industrial process piping. With their blend of durability, mechanical reliability, and precision engineering, Carbon Steel Orifice Flanges offer a trustworthy solution for accurate flow measurement in vital industrial operations.
Yes, we offer custom sizes for Carbon Steel Orifice Flanges to meet specific project needs. Our team at Arda Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ardaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
