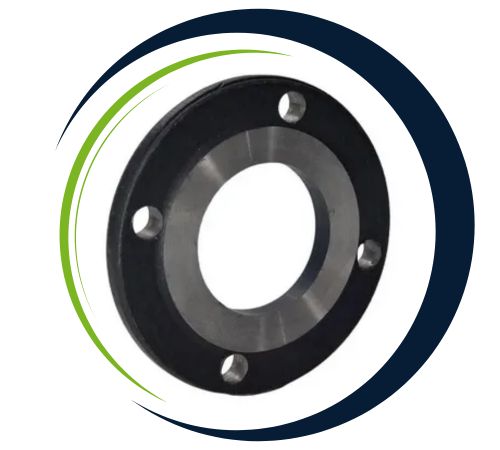

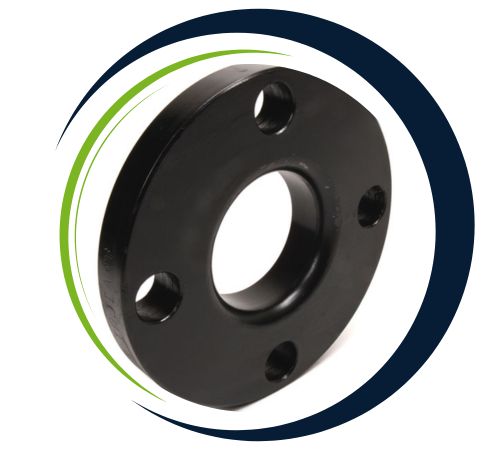

Arda Flanges, located in Istanbul, Turkey, stands out as a top-notch manufacturer and supplier of high-quality Carbon Steel Plate Flanges, serving a wide range of industrial needs around the globe. With a strong dedication to excellence and precision engineering, Arda Flanges produces flanges that not only meet international standards but also align perfectly with customer specifications. Their Carbon Steel Plate Flanges are made using cutting-edge manufacturing techniques, guaranteeing durability, reliability, and outstanding performance even in the toughest conditions. Known for their sturdy design, resistance to corrosion, and versatility, these flanges play vital roles in pipelines, pressure vessels, and structural applications across various sectors, including oil and gas, petrochemical, power, and marine industries.
These Carbon Steel Plate Flanges are primarily made from carbon steel, often enhanced with small amounts of manganese, phosphorus, sulfur, and other trace elements to boost strength and machinability. They showcase impressive mechanical properties, such as high tensile strength, yield strength, and hardness, making them ideal for high-pressure and high-temperature situations. Additionally, they provide excellent impact resistance and durability, ensuring they perform well over the long haul in industrial settings. The blend of ductility and toughness allows these flanges to handle mechanical stress and thermal fluctuations, making them a dependable choice for critical piping and structural systems.

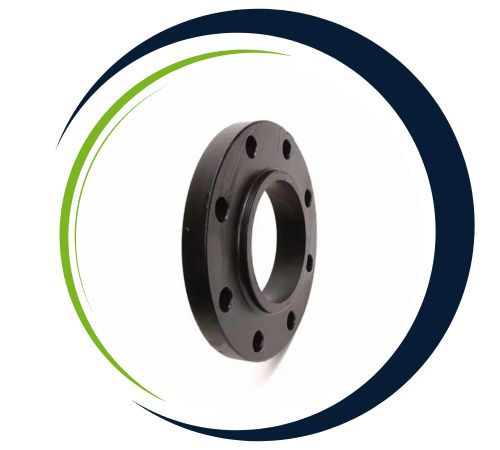

Standards : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size: 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

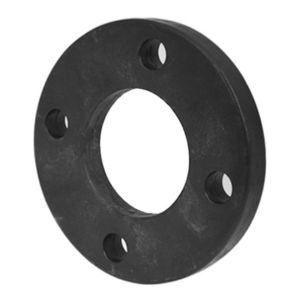

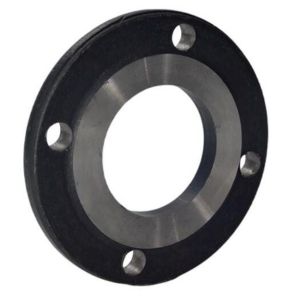

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Carbon Plate Flanges: ASTM A182 F304, F304L, F310, F316, F316L, F317, F317L

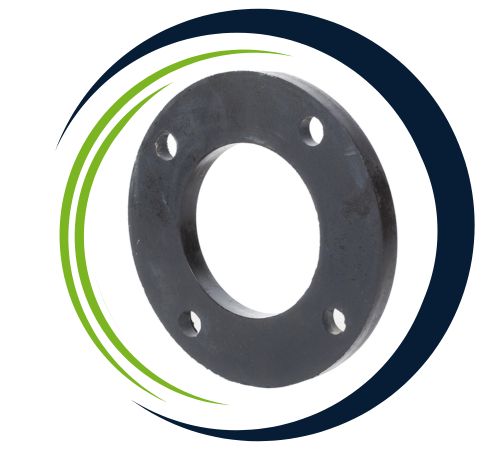

Carbon Steel Plate Flanges: ASTM A105/A105N, A694 F42, F46, F52, F60, F65, F70, A516.60, 65, 70

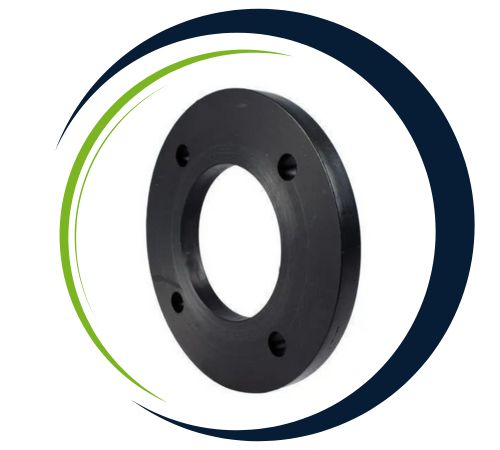

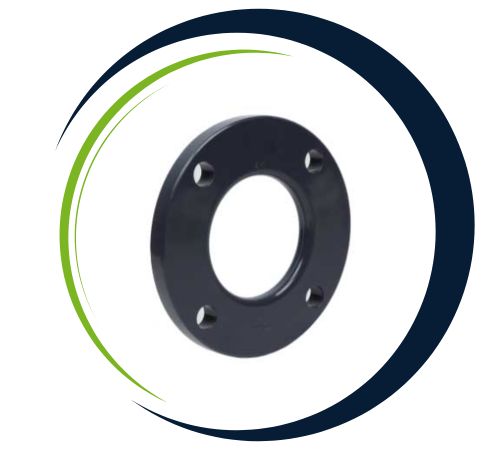

Low Temperature Carbon Steel Plate Flanges: ASTM A350, LF1, LF2 CL1/CL2, LF3 CL1/CL2
Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100%
Arda Flanges, a premier supplier in Istanbul, Turkey, specializes in high-quality Carbon Steel Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Carbon Steel Plate Flanges are extensively utilized in the oil and gas, petrochemical, chemical, and power industries due to their strength and reliability. They are crucial for connecting pipes, valves, pumps, and other equipment, creating leak-proof joints for high-pressure systems. These flanges also find applications in water treatment plants, shipbuilding, and construction projects, where durability and resistance to corrosion are essential. Available in various designs like weld neck, slip-on, blind, and socket weld, Carbon Steel Plate Flanges ensure efficient flow, structural integrity, and safety in pipelines and tanks.
| Nominal Size Thickness (inches) | Weight (lb/ft2) |
|---|---|
| 3/16 | 7.65 |
| 1/4 | 10.2 |
| 5/16 | 12.8 |
| 3/8 | 15.3 |
| 7/16 | 17.9 |
| 1/2 | 20.4 |
| 9/16 | 22.9 |
| 5/8 | 25.5 |
| 11/16 | 28.1 |
| 3/4 | 30.6 |
| 13/16 | 33.2 |
| 7/8 | 35.7 |
| 1 | 40.8 |
| 1 1/8 | 45.9 |
| 1 1/4 | 51.0 |
| 1 3/8 | 56.1 |
| 1 1/2 | 61.2 |
| 1 5/8 | 66.3 |
| 1 3/4 | 71.4 |
| 1 7/8 | 76.5 |
| 2 | 81.6 |
| 2 1/8 | 86.7 |
| Plate Diameter | Pipes | PN 16 Plate Flange | Screws/Thread | Weight In KG | |||||
|---|---|---|---|---|---|---|---|---|---|
| (d1) | (k) | (D) | (b) | (d2) | (Thread) | (Flange Bolt holes) | (Kilogram) | ||
| 15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
| 20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
| 25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
| 32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
| 40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
| 50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
| 65 | 76,1 | 77,5 | 145 | 185 | 22 | 18 | M16 | 8 | 3,465 |
| 80 | 88,9 | 90,5 | 160 | 200 | 24 | 18 | M16 | 8 | 4,310 |
| 100 | 114,3 | 116,0 | 190 | 235 | 26 | 22 | M20 | 8 | 6,056 |
| 125 | 139,7 | 141,5 | 220 | 270 | 28 | 26 | M24 | 8 | 8,170 |
| 150 | 168,3 | 170,5 | 250 | 300 | 30 | 26 | M24 | 8 | 10,238 |
| 200 | 219,1 | 221,5 | 310 | 360 | 32 | 26 | M24 | 12 | 14,245 |
| 250 | 273,0 | 276,5 | 370 | 425 | 35 | 30 | M27 | 12 | 20,087 |
| 300 | 323,9 | 327,5 | 430 | 485 | 38 | 30 | M27 | 16 | 26,526 |
| 350 | 355,6 | 359,5 | 490 | 555 | 42 | 33 | M30 | 16 | 41,656 |
| 400 | 406,4 | 411,0 | 550 | 620 | 48 | 36 | M33 | 16 | 57,456 |
| 450 | 457,0 | 462,0 | 600 | 670 | 54 | 36 | M33 | 20 | 69,548 |
| 500 | 508,0 | 513,5 | 660 | 730 | 58 | 36 | M33 | 20 | 86,736 |
| 600 | 610,0 | 616,5 | 770 | 845 | 68 | 39 | M36 | 20 | 126,866 |
| 700 | 711,2 | 714,0 | 875 | 960 | 85 | 42 | M39 | 24 | 193,031 |
| 800 | 812,8 | 816,0 | 990 | 1085 | 95 | 48 | M45 | 24 | 266,311 |
Yes, we offer custom sizes for Carbon Steel Plate Flanges to meet specific project needs. Our team at Arda Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ardaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
