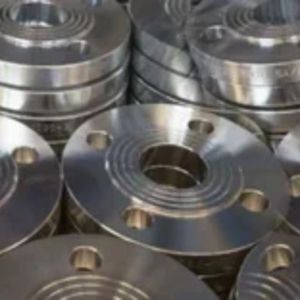

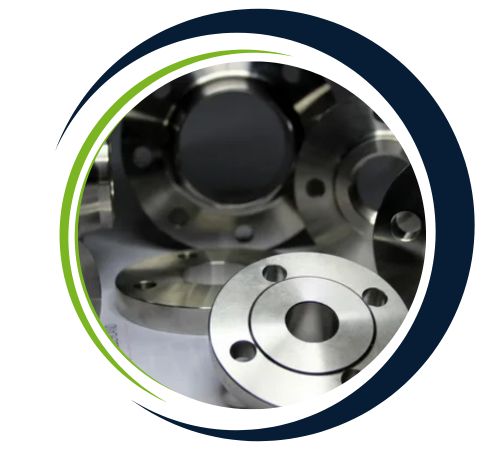

Arda Flanges, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of DIN 2576 PN10 Slip-On Flanges, delivering reliable and high-quality solutions for low-pressure piping systems. These flanges are designed to easily slip over the pipe and are then welded on both the inside and outside, ensuring a secure, leak-proof connection. Built to meet DIN 2576 standards with a PN10 pressure rating, they can handle applications up to 10 bar. Thanks to advanced production facilities, rigorous quality control, and adherence to international standards, Arda Flanges guarantees durable, cost-effective, and trustworthy flange solutions for industrial pipelines and equipment.
Typically crafted from carbon steel, stainless steel, or alloy steel, DIN 2576 PN10 Slip-On Flanges boast excellent mechanical strength, corrosion resistance, and dimensional stability. They provide sufficient tensile and yield strength for low-pressure applications, along with impressive toughness and ductility. The slip-on design simplifies alignment and installation compared to welded neck flanges, while the full welding ensures a solid and dependable connection. Their PN10 rating makes them perfect for medium- to low-pressure industrial systems.
Arda Flanges, a leading supplier in Istanbul, Turkey, offers an extensive selection of DIN 2573 PN6 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
Pipe | Flange | Bolts | Weight of one flange 7.85 kg/ dm3) kg | |||||||
NW | d1 | ds | D | b1 | k | Number | Thread | d2 | ||
10 | 14 17.2) | 14.5 17.7 | 90 | 14 | 60 | 4 | M12 | (1/2″) | 14 | 0.613 0.605 |
15 | 20 21.3) | 20.5 21.8 | 95 | 14 | 65 | 4 | M12 | (1/2″) | 14 | 0675 0.669 |
20 | 25 26.9) | 25.5 27.4 | 105 | 16 | 75 | 4 | M12 | (1/2″) | 14 | 0.947 0.936 |
25 | 30 33.7) | 30.5 34.2 | 115 | 16 | 85 | 4 | M12 | (1/2″) | 14 | 1.14 1.11 |
32 | 38 42.4) | 38.5 42.9 | 140 | 16 | 100 | 4 | M16 | (5/8″) | 18 | 1.66 1.62 |
40 | 44.5 48.3) | 45 48.8 | 150 | 16 | 110 | 4 | M16 | (5/8″) | 18 | 1.89 1.86 |
50 | 57 60.3) | 57.5 60.8 | 165 | 18 | 125 | 4 | M16 | (5/8″) | 18 | 2.51 2.47 |
65 | 76.1) | 76.6 | 185 | 18 | 145 | 4 | M16 | (5/8″) | 18 | 3.00 |
80 | 88.9) | 89.4 | 200 | 20 | 160 | 4 | M16 | (5/8″) | 18 | 3.79 |
100 | 108 114.3) | 108.5 114.8 | 220 | 20 | 180 | 8 | M16 | (5/8″) | 18 | 4.20 4.03 |
125 | 133 139.7) | 133.5 140.2 | 250 | 22 | 210 | 8 | M16 | (5/8″) | 18 | 5.71 5.46 |
150 | 159 168.3) | 159.5 168.8 | 285 | 22 | 210 | 8 | M16 | (3/4″) | 23 | 6.72 6.57 |
175 | 191 193.7) | 192 194.7 | 315 | 24 | 270 | 8 | M20 | (3/4″) | 23 | 8.60 8.45 |
200 | 216 219.1) | 216 220.1 | 340 | 24 | 295 | 8 | M20 | (3/4″) | 23 | 9.50 9.31 |
250 | 267 273) | 268 274 | 395 | 26 | 350 | 12 | M20 | (3/4″) | 23 | 12.5 11.9 |
400 | 406.4 419 | 407.4 420 | 565 | 32 | 515 | 16 | M24 | (7/8″) | 27 | 27.9 25.9 |
500 | 508) 521 | 509 522 | 670 | 38 | 620 | 20 | M24 | (7/8″) | 27 | 37.9 41.1 |
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
You’ll find DIN 2576 PN10 Slip-On Flanges widely used in industries like water treatment, chemical processing, oil and gas, petrochemical, and power generation. They’re great for connecting pipelines, pumps, valves, and pressure vessels in low-pressure systems, ensuring reliable sealing and operational efficiency. These flanges are commonly used in industrial fluid transfer, water distribution systems, and low-pressure chemical pipelines. With their straightforward installation, mechanical reliability, and resistance to corrosion, DIN 2576 PN10 Slip-On Flanges provide an efficient and long-lasting solution for industrial applications that require safe and durable flange connections.
Yes, we offer custom sizes for DIN 2576 PN10 Slip On Flanges to meet specific project needs. Our team at Arda Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ardaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
