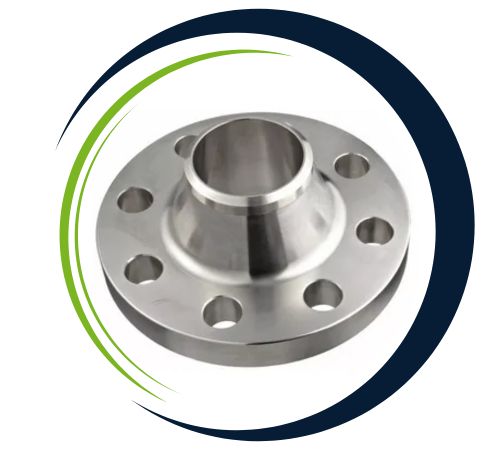

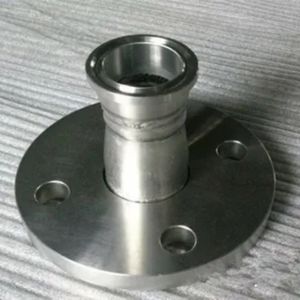

Arda Flanges, a reputable manufacturer and supplier located in Istanbul, Turkey, focuses on crafting top-notch DIN 2633 PN16 Weld Neck Flanges for industrial piping systems. These flanges are engineered to create strong, leak-proof connections, built to handle medium-pressure situations while ensuring they last and resist corrosion. Adhering strictly to DIN 2633 standards, the PN16 Weld Neck Flanges boast precise dimensions, mechanical stability, and dependable performance even in tough environments. Thanks to advanced manufacturing techniques, thorough quality checks, and a commitment to international standards, Arda Flanges has made a name for itself as a reliable global supplier of DIN 2633 PN16 Weld Neck Flanges across various sectors, including chemical, petrochemical, oil, gas, and water industries.
Typically crafted from carbon steel, stainless steel, or alloy steel based on specific application needs, DIN 2633 PN16 Weld Neck Flanges provide moderate tensile strength, yield strength, and elongation that are ideal for medium-pressure operations. Their tapered hub design ensures even stress distribution, enhancing mechanical stability during high-pressure flow. With impressive hardness, toughness, and resistance to corrosion and wear, these flanges guarantee reliable mechanical performance, long-lasting durability, and consistent quality in industrial piping systems.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
Germany standard flange DIN 2633 welding neck flanges; nominal pressure 16 |
||||||||||||||||
|
Brides à souder à collerette DIN 2633: pression nominale 16 |
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | – | 32 | ||||||||||||||
| 20 | – | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | – | 40 | ||||||||||||||
| 25 | – | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | – | 45 | ||||||||||||||
| 32 | – | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | – | 56 | ||||||||||||||
| 40 | – | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | – | 64 | ||||||||||||||
| 50 | – | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | – | 75 | ||||||||||||||
| 65 | 76,1 | – | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | – | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | – | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | – | 131 | ||||||||||||||
| 125 | – | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | – | 156 | ||||||||||||||
| 150 | – | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | – | 184 | ||||||||||||||
| (175) | 193,7 | – | 315 | 24 | 270 | 60 | 210 | 5,4 | 10 | 12 | 242 | 3 | 8 | M 20 | 22 | 9,85 |
| 200 | 219,1 | – | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 12 | M 20 | 22 | 11 |
| 250 | – | 267 | 405 | 26 | 355 | 70 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 24 | 26 | 15,6 |
| 273 | – | 292 | ||||||||||||||
| 300 | 323,9 | – | 460 | 28 | 410 | 78 | 344 | 7,1 | 12 | 16 | 378 | 4 | 12 | M 24 | 26 | 22 |
| 350 | 355,6 | – | 520 | 30 | 470 | 82 | 390 | 8 | 12 | 16 | 438 | 4 | 16 | M 24 | 26 | 31,2 |
| – | 368 | 28,8 | ||||||||||||||
| 400 | 406,4 | – | 580 | 32 | 525 | 85 | 445 | 8 | 12 | 16 | 490 | 4 | 16 | M 27 | 30 | 39,3 |
| – | 419 | 36,3 | ||||||||||||||
| (450) | 457 | – | 640 | 34 | 585 | 85 | 490 | 8 | 12 | 16 | 550 | 4 | 20 | M 27 | 30 | 44,3 |
| 500 | 508 | – | 715 | 34 | 650 | 90 | 548 | 8 | 12 | 16 | 610 | 4 | 20 | M 30 | 33 | 61 |
| 600 | 610 | – | 840 | 36 | 770 | 95 | 652 | 8,8 | 12 | 18 | 725 | 5 | 20 | M 33 | 36 | 75,4 |
| 700 | 711 | – | 910 | 36 | 840 | 100 | 755 | 8,8 | 12 | 18 | 795 | 5 | 24 | M 33 | 36 | 77 |
| 800 | 813 | – | 1025 | 38 | 950 | 105 | 855 | 10 | 12 | 20 | 900 | 5 | 24 | M 36 | 39 | 101 |
| 900 | 914 | – | 1125 | 40 | 1050 | 110 | 955 | 10 | 12 | 20 | 1000 | 5 | 28 | M 36 | 39 | 122 |
| 1000 | 1016 | – | 1255 | 42 | 1170 | 120 | 1058 | 10 | 16 | 22 | 1115 | 5 | 28 | M 39 | 42 | 162 |
Arda Flanges, a leading supplier in Istanbul, Turkey, offers an extensive selection of DIN 2633 PN16 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2633 PN16 Weld Neck Flanges are commonly utilized in industries that demand secure and durable pipeline connections. You’ll often find them in chemical and petrochemical plants, water supply and wastewater systems, and oil and gas pipelines where medium-pressure performance is crucial. They’re also used in power generation facilities, HVAC systems, and industrial process piping. The weldable neck design allows for precise alignment, creating leak-proof joints and minimizing maintenance needs. With their reliable sealing, corrosion resistance, and long-term operational safety, DIN 2633 PN16 Weld Neck Flanges are a smart choice for any industrial piping system.
Yes, we offer custom sizes for DIN 2633 PN16 Weld Neck Flanges to meet specific project needs. Our team at Arda Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ardaflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2633 PN16 Weld Neck Flange Dimensions | Raised Face DIN 2633 PN16 Weld Neck Flange Manufacturer |
| DIN 2633 PN16 Weld Neck Flange Manufacturer | Flat Face DIN 2633 PN16 Weld Neck Flange Manufacturer |
| 30 inch DIN 2633 PN16 Weld Neck Flange Dealer | Raised Face DIN 2633 PN16 Weld Neck Flanges Manufacturer |
| DIN 2633 PN16 Weld Neck Pipe Flanges Wholesaler | DIN 2633 PN16 WNRF Flanges Supplier |
| DIN 2633 PN16 WNRF Flange Stockist in Turkey | Raised Faced DIN 2633 PN16 Slip-On flanges Dealer in Turkey |
| Raised Face DIN 2633 PN16 Weld Neck Plate Flanges | Titanium DIN 2633 PN16 Welding Neck Flanges |
| 18 inch DIN 2633 PN16 Carbon Steel Weld Neck Flange | DIN 2633 PN16 Weld Neck Flange Dimensions in mm |
| DIN 2633 PN16 WNRF Flanges Supplier in Istanbul | Alloy Steel DIN 2633 PN16 Weld Neck Flanges Manufacturer in İzmir |
| Nickel Alloy DIN 2633 PN16 Welding Neck Flange | Mild Steel DIN 2633 PN16 Weld Neck Flange |
| Alloy Steel DIN 2633 PN16 Welding Neck Flanges | Copper Nickel DIN 2633 PN16 Weld Neck Flanges at Best Price |
| DIN 2633 PN16 Welding Neck FF Flange Supplier | Suppliers of DIN 2633 PN16 Weld Neck Flange |
| DIN 2633 PN16 WNRF Flanges Distributor in Bursa | Flat Face DIN 2633 PN16 Weld Neck Flanges Exporter |
| DIN 2633 PN16 Welding Neck Flanges Supplier in West Istanbul | MS DIN 2633 PN16 Weld Neck Flange |
| DIN 2633 PN16 Large Diameter Weld Neck Flange | 30 Inch DIN 2633 PN16 Weld Neck Pipe Flange Dimensions |
| 8 Inch DIN 2633 PN16 Welding Neck Pipe Flanges | DIN 2633 PN16 Weld Neck Flanges Stockist |
| Carbon Steel Raised Face DIN 2633 PN16 Weld Neck Flange Stockist | Duplex Steel DIN 2633 PN16 WNRF Flanges Supplier in Istanbul |
| ASME SA105N Raised Faced DIN 2633 PN16 Weld Neck Flanges | 18 inch Carbon Steel DIN 2633 PN16 Weld Neck Flange |
| Carbon Steel DIN 2633 PN16 Welding Neck Flange | DIN 2633 PN16 Weld Neck RF Flange Supplier |
| DIN 2633 PN16 Weld Neck Pipe Flanges Supplier in Bodrum | Duplex Steel DIN 2633 PN16 Weld Neck Flanges |
| 4 inch Stainless Steel DIN 2633 PN16 Weld Neck Flange | DIN 2633 PN16 Weld Neck RF Flanges Stockholder |
| Stainless Steel DIN 2633 PN16 Weld Neck Flange | ASTM B564 Raised Faced DIN 2633 PN16 Weld Neck Flanges |
| DIN 2633 PN16 WNRF Flange Exporter | DIN 2633 PN16 Weld Neck Flange Pressure Ratings |
| German Standard DIN 2633 PN16 Weld Neck Flanges | DIN 2633 PN16 Weld Neck Flange Supplier in Turkey |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
