Arda Flanges, located in Istanbul, Turkey, is a well-respected manufacturer and supplier known for its top-notch industrial flanges, including Hastelloy C22 flanges, which are particularly popular in Midland, UK. With a strong commitment to precision engineering, durability, and adherence to international quality standards, Arda Flanges consistently delivers reliable products that can handle even the toughest environments. The company has earned a stellar reputation for excellence, thanks to its dependable supply chain, high-quality materials, and outstanding customer service. Their Hastelloy C22 flanges are especially noted for their remarkable resistance to corrosion and their ability to perform under extreme chemical and thermal conditions, making them a trusted choice.
The Hastelloy C22 flanges, manufactured and supplied in Midland, UK, are primarily made of nickel, with significant amounts of chromium, molybdenum, and tungsten added to enhance their resistance to both oxidizing and reducing agents. These flanges boast impressive mechanical properties, including high tensile strength, good ductility, and robust toughness, even at elevated temperatures. The unique composition of the alloy helps it resist pitting, crevice corrosion, and stress corrosion cracking, ensuring long-lasting performance in aggressive environments. This blend of strength and corrosion resistance makes Hastelloy C22 flanges a dependable option for critical industrial applications.
| C22 Forged Fittings Specifications | ASTM B564/ ASME SB564 |
|---|---|
| Alloy C22 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Hastelloy C22 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Hastelloy C22 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B564 C22 Hastelloy Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Hastelloy C22 Forged Fittings Thread | NPT, BSPT, BSPP |
| C22 Hastelloy Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy C22 Forged Fittings Origin & Mills | Turkey |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

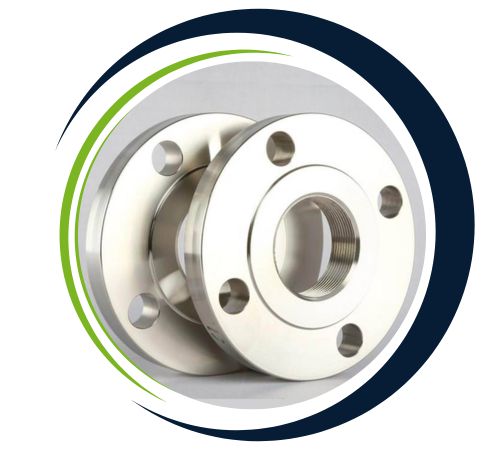

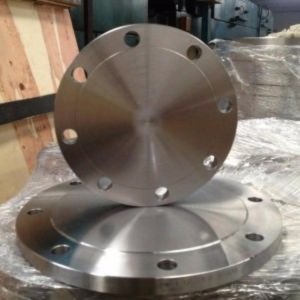

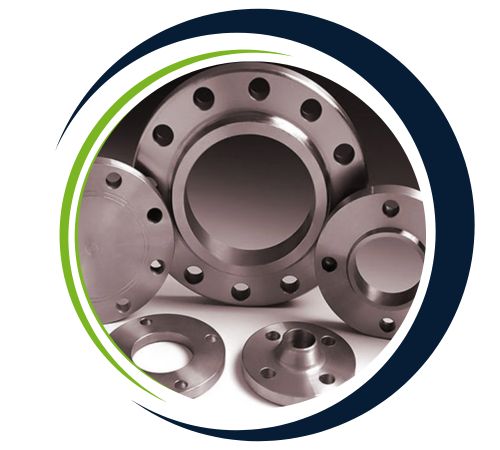

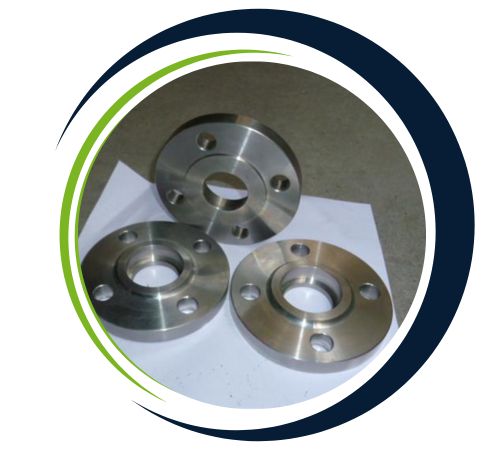

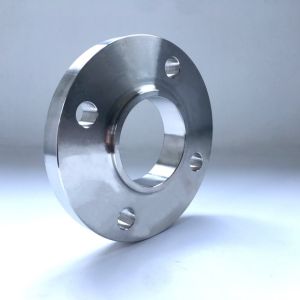

Arda Flanges, a leading supplier in Istanbul, Turkey, offers an extensive selection of Hastelloy C22 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hastelloy C22 flanges are widely utilized in industries that require resistance to highly corrosive environments. They find common applications in chemical processing plants, marine industries, power generation, and pollution control equipment, where exposure to harsh chemicals and extreme conditions is a daily reality. Additionally, these flanges are essential in the pharmaceutical and food processing sectors, where maintaining hygienic and contaminant-free environments is crucial. Their reliability in severe oxidizing and reducing conditions ensures safe and efficient operations, making them vital components in piping systems.
| ASTM B564 / B564M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Hastelloy Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Hastelloy fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yes, we offer custom sizes for Hastelloy C22 Flanges to meet specific project needs. Our team at Arda Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ardaflanges.com.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | – | NiCr21Mo14W | NW 6022 | – | – |
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
