Arda Flanges, a top-notch manufacturer and supplier based in Istanbul, Turkey, is well-known for crafting high-quality flanges that meet international standards. One of their standout products, Super Duplex Steel Flanges, is particularly prized for its remarkable strength, durability, and outstanding resistance to corrosion. By blending the advantages of both ferritic and austenitic stainless steels, these flanges guarantee reliable performance even in high-pressure and corrosive settings. With precision engineering and cutting-edge technology, Arda’s Super Duplex Steel Flanges offer leak-proof, safe, and long-lasting connections, making them the go-to choice for industries that operate under demanding conditions.
Super Duplex Steel Flanges are made from a mix of high chromium, nickel, molybdenum, and nitrogen, which work together to boost their resistance to pitting, stress corrosion cracking, and crevice corrosion. Their unique duplex microstructure provides impressive mechanical properties, such as high tensile and yield strength, excellent toughness, and fatigue resistance. These flanges perform exceptionally well even in freezing temperatures and are easy to weld. The perfect balance of hardness and ductility ensures they remain structurally stable, making Super Duplex Steel Flanges perfect for tough operational environments where regular stainless steels might struggle.
| Specifications | : | ASTM A182 / ASME SA182 |
| Size | : | 1/8″ NB TO 24″ NB |
| Standards | : | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | : | S32750 / S32760 / S32950 |

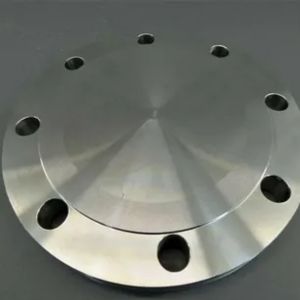

Arda Flanges, a leading supplier in Istanbul, Turkey, offers an extensive selection of Super Duplex Steel Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| % | ASTM A182 Super Duplex UNS S32750 And UNS 32760 Flanges |
| C | 0.03 maximum |
| Mn | 1.5 |
| Mo | 3.0-5.0 |
| Ni | 5.5-8.0 |
| N | 0.2-0.35 |
| Si | 0.8 |
| P | 0.035 |
| S | 0.02 |
| Cr | 24-26 |
| Cu | 0.5-3.0 |
| Tensile Strength (in MPa) | 770 |
| A5 Elongation (in %) | 25 |
| Proof Stress 0.2% (in MPa) | 550 |
Super Duplex Steel Flanges find their place in various industries that require top-tier mechanical strength and corrosion resistance. You’ll often see them in offshore oil and gas platforms, chemical processing plants, desalination facilities, power generation units, and shipbuilding. Their ability to resist chloride-induced corrosion makes them especially effective in marine and seawater applications. Additionally, they’re used in pulp and paper, petrochemical, and heat exchanger systems where safety, efficiency, and durability are paramount. Super Duplex Steel Flanges are designed to provide a long service life, ensuring reliability in critical applications.
| Normal Pipe Size | Flanges Diameter (‘O’) | Diameter of (B.C.) ‘A’ | Diameter of (B.H.) ‘D’ | Holes Number | Flanges Wall Thickness ‘C’ | Diameter (Flanges) at Weld Bevel | (Flanges) Diameter of Hub ‘E’ | Length Of Through Hub | Bore (‘B’) | Diameter of (RF) R | Depth of Socket Weld F | Threading Length | ||||
| SORF/ SWRF (Y) | WNRF (Y) | Lap Joit (Y) | SORF/ SWRF (B) | Lap Joit (B) | ||||||||||||
| 1/2” | 15 | 95.2 | 66.7 | 15.9 | 4 | 14.3 | 21.3 | 38.1 | 22.2 | 52.4 | 22.2 | 22.3 | 22.9 | 34.9 | 9.5 | 15.9 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4” | 20 | 117.5 | 82.5 | 19.0 | 4 | 15.9 | 26.7 | 47.6 | 25.4 | 57.1 | 25.4 | 27.7 | 28.2 | 42.9 | 11.1 | 15.9 |
| 1” | 25 | 123.8 | 88.9 | 19.0 | 4 | 17.5 | 33.5 | 54.0 | 27.0 | 61.9 | 27.0 | 34.5 | 35.0 | 50.8 | 12.7 | 17.5 |
| 1 | 32 | 133.3 | 98.4 | 19.0 | 4 | 20.6 | 42.2 | 63.5 | 28.6 | 66.7 | 28.6 | 43.2 | 43.7 | 63.5 | 14.3 | 20.6 |
| 1 | 40 | 155.6 | 114.3 | 22.2 | 4 | 22.2 | 48.3 | 69.8 | 31.7 | 69.8 | 31.7 | 49.5 | 50.0 | 73.0 | 15.9 | 22.2 |
| 2” | 50 | 165.1 | 127.0 | 19.0 | 8 | 25.4 | 60.4 | 84.1 | 36.5 | 73.0 | 36.5 | 62.0 | 62.5 | 92.1 | 17.5 | 25.4 |
| 2 | 65 | 190.5 | 149.2 | 22.2 | 8 | 28.6 | 73.1 | 100.0 | 41.3 | 79.4 | 41.3 | 74.7 | 75.4 | 104.8 | 19.0 | 28.6 |
| 3” | 80 | 209.5 | 168.3 | 22.2 | 8 | 31.8 | 88.9 | 117.5 | 46.0 | 82.5 | 46.0 | 90.7 | 91.4 | 127.0 | – | 30.2 |
| 3 | 90 | 228.5 | 184.2 | 22.2 | 8 | 34.9 | 101.6 | 133.4 | 49.3 | 85.7 | 49.3 | 103.4 | 104.1 | 140.0 | – | 31.7 |
| 4” | 100 | 273.0 | 215.9 | 25.4 | 8 | 38.1 | 114.3 | 152.4 | 54.0 | 101.6 | 54.0 | 116.1 | 116.8 | 157.2 | – | 33.3 |
| 5” | 125 | 330.2 | 266.7 | 28.6 | 8 | 44.4 | 141.2 | 188.9 | 60.3 | 114.3 | 60.3 | 143.8 | 144.5 | 185.7 | – | 36.5 |
| 6” | 150 | 355.6 | 292.1 | 28.6 | 12 | 47.6 | 168.4 | 222.2 | 66.7 | 117.5 | 66.7 | 170.7 | 171.4 | 215.9 | – | 39.7 |
| 8” | 200 | 419.1 | 349.2 | 31.7 | 12 | 55.6 | 219.2 | 273.0 | 76.2 | 133.3 | 76.2 | 221.5 | 222.2 | 269.9 | – | 44.4 |
| 10” | 250 | 508.0 | 431.8 | 34.9 | 16 | 63.5 | 273.0 | 342.9 | 85.7 | 152.4 | 111.2 | 276.3 | 277.4 | 323.8 | – | 49.2 |
| 12” | 300 | 558.8 | 488.9 | 34.9 | 20 | 66.7 | 323.8 | 400.0 | 92.1 | 155.6 | 117.3 | 327.1 | 328.2 | 381.0 | – | 55.6 |
| 14” | 350 | 603.2 | 527.0 | 38.1 | 20 | 69.9 | 355.6 | 431.8 | 93.7 | 165.1 | 127.0 | 359.1 | 360.2 | 412.7 | – | 57.1 |
| 16” | 400 | 685.8 | 603.2 | 41.3 | 20 | 76.2 | 406.4 | 495.3 | 106.4 | 177.8 | 139.7 | 410.5 | 411.2 | 469.9 | – | 63.5 |
| 18” | 450 | 742.9 | 654.0 | 44.4 | 24 | 82.6 | 457.2 | 546.1 | 117.5 | 184.1 | 152.4 | 461.8 | 462.3 | 533.4 | – | 68.3 |
| 20” | 500 | 812.8 | 723.9 | 44.4 | 24 | 88.9 | 508.0 | 609.6 | 127.0 | 190.5 | 165.1 | 513.1 | 514.3 | 584.2 | – | 73.0 |
| 24” | 600 | 939.8 | 838.2 | 50.8 | 24 | 101.6 | 609.6 | 717.5 | 139.7 | 203.2 | 184.1 | 615.9 | 615.9 | 692.1 | – | 82.5 |
Yes, we offer custom sizes for Super Duplex Steel Flanges to meet specific project needs. Our team at Arda Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ardaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
